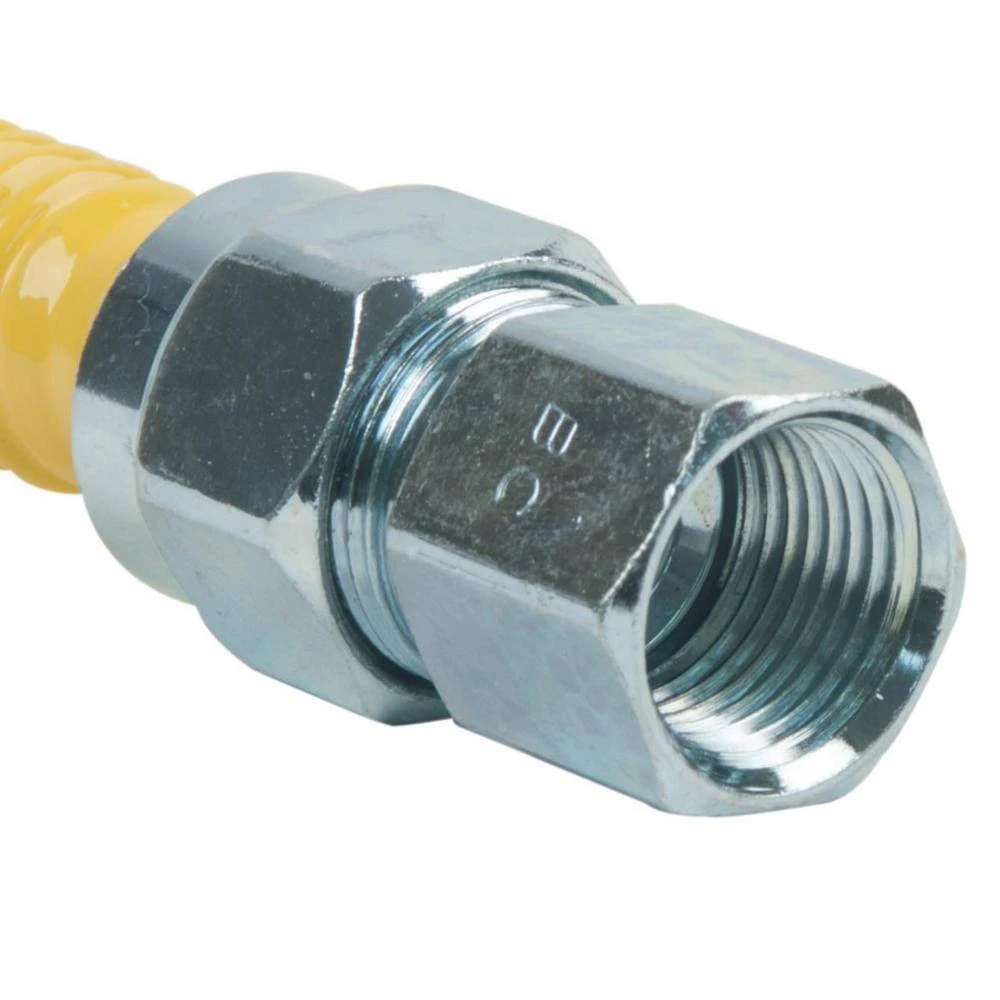

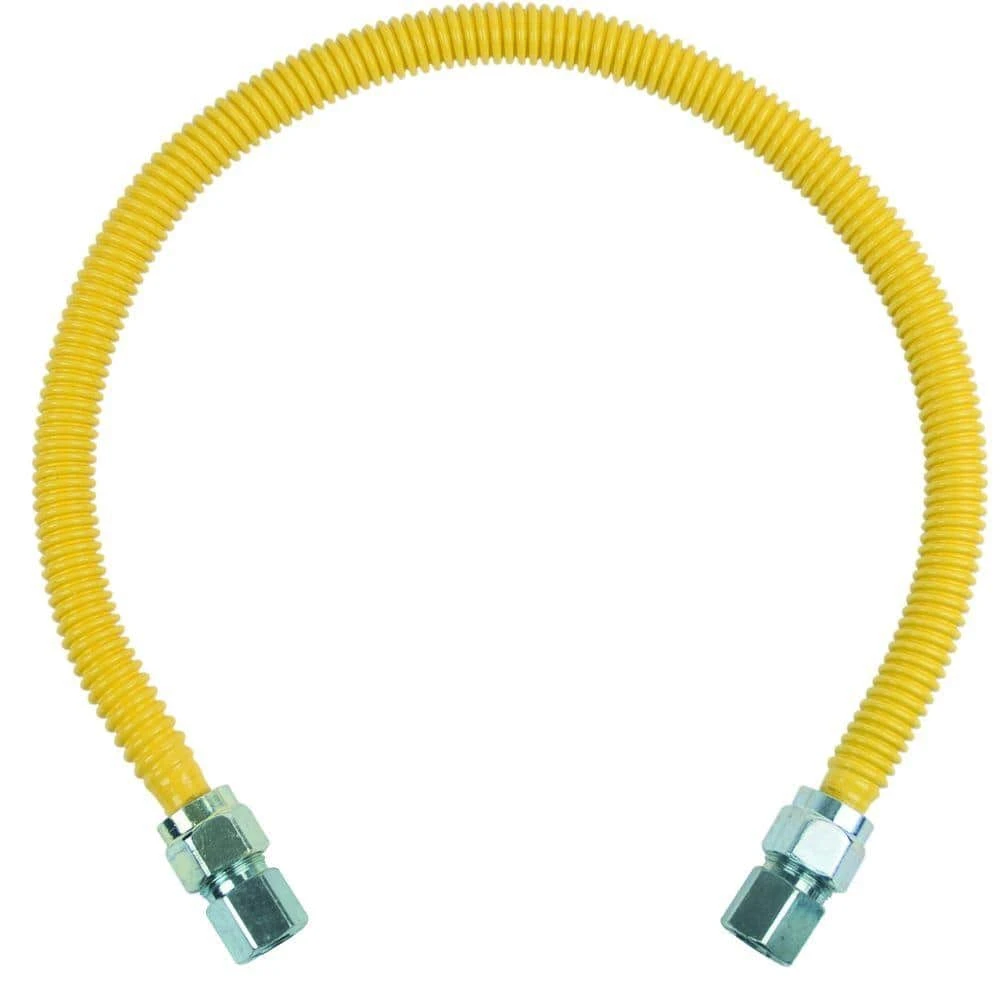

ProCoat 1/2 In. FIP X 1/2 In. FIP X 30 In. Stainless Steel Gas Connector 5/8 In. O.D. (136,000 BTU)

ProCoat 1/2 In. FIP X 1/2 In. FIP X 30 In. Stainless Steel Gas Connector 5/8 In. O.D. (136,000 BTU) - Image 2

ProCoat 1/2 In. FIP X 1/2 In. FIP X 30 In. Stainless Steel Gas Connector 5/8 In. O.D. (136,000 BTU) - Image 3

Original price was: $18.69.Current price is: $13.08.

SKU: AG9TZ 1000686816 Categories: HVAC Supplies, Pipe Fittings & Connectors

No-Questions-Asked Returns
Guaranteed High Quality
Top-Notch Quality
Online assistance, always just a message away.

BrassCraft’s ProCoat stainless steel gas connector is engineered with added safety in mind. The proprietary polymer coating is designed to withstand prolonged exposure to harsh household chemicals, UV rays and salt. ProCoat is applied to the corrugated stainless steel connector using advanced powder-coat technology. Unlike conventional dipped or sprayed coatings, the ProCoat coating is baked directly onto the connector surface at high temperatures to provide a uniform coating over the entire length of the connector. The coating is applied only after the connector has been 100% leak tested, prior to nut and fitting assembly. This process results in the most complete corrosion resistance available.

1/2 in. I.D. (5/8 in. O.D.) corrugated stainless steel with corrosion resistant coating
Steel fittings included: (2) 1/2 in. FIP
ProCoat coating corrosion resistant to harsh chemicals as well as UV rays and salt
Use with natural and LP (propane) gases
100% leak tested
Approved for indoor and outdoor use
Temperature rating: -40° to 150°F
Pressure rating: 1/2 psi maximum
CSA certified

Connection type	FIP x FIP
Gas Vent Pipe and Fittings Accessory Type	Gas Appliance Connector
Inner material	Stainless steel
Maximum Pressure (PSI)	.5 PSI
Maximum Working Temperature (F)	150
Minimum working temperature (F)	-40
Outer Material	Other
Pack Size	1
Product Weight (lb.)	0.8432 lb
Returnable	90-Day
Certifications and Listings	CSA Listed
Manufacturer Warranty	Limited Manufacturer Warranty
Inner diameter (in.)	0.5
Outer diameter (in.)	0.625
Product Depth (in.)	1.25 in
Product Height (in.)	30.23 in
Product Length (in.)	30.230 in
Product Width (in.)	1.25 in
