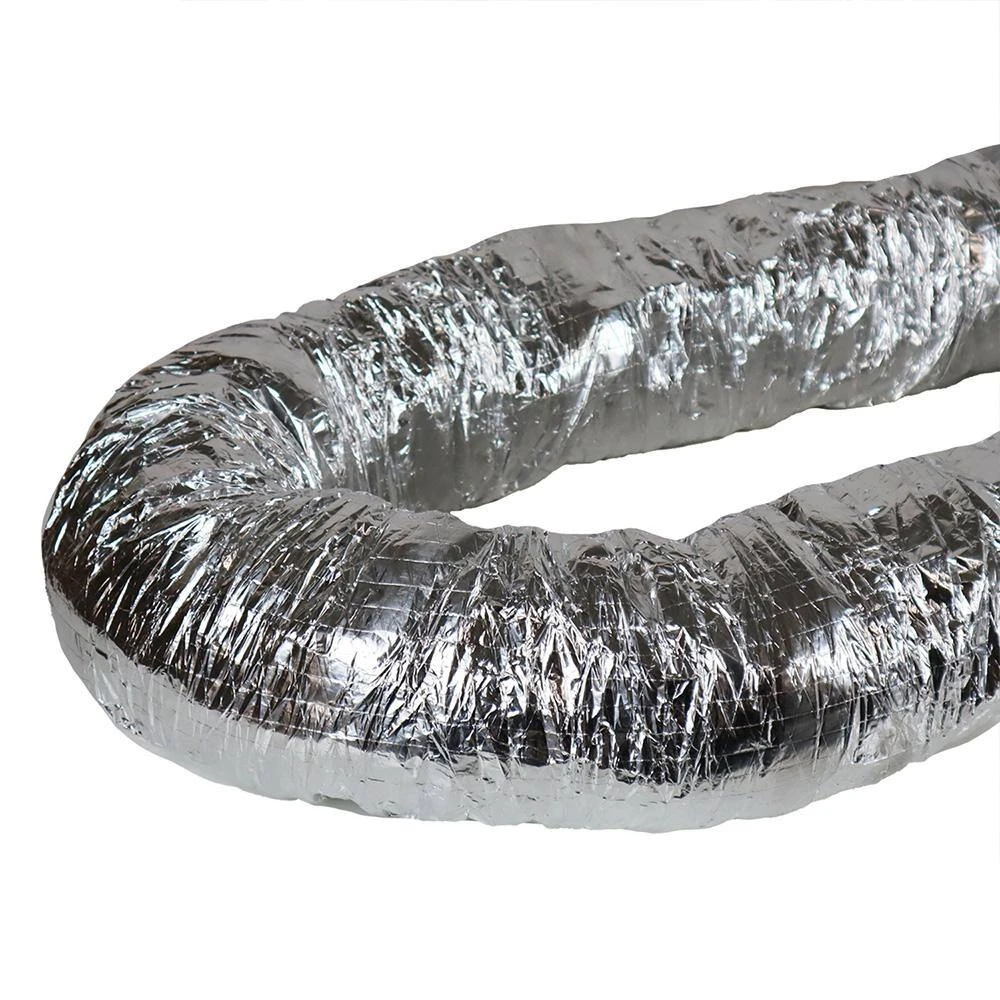

HVAC Insulated-Flex R-6 – 4 In. Flexible Duct

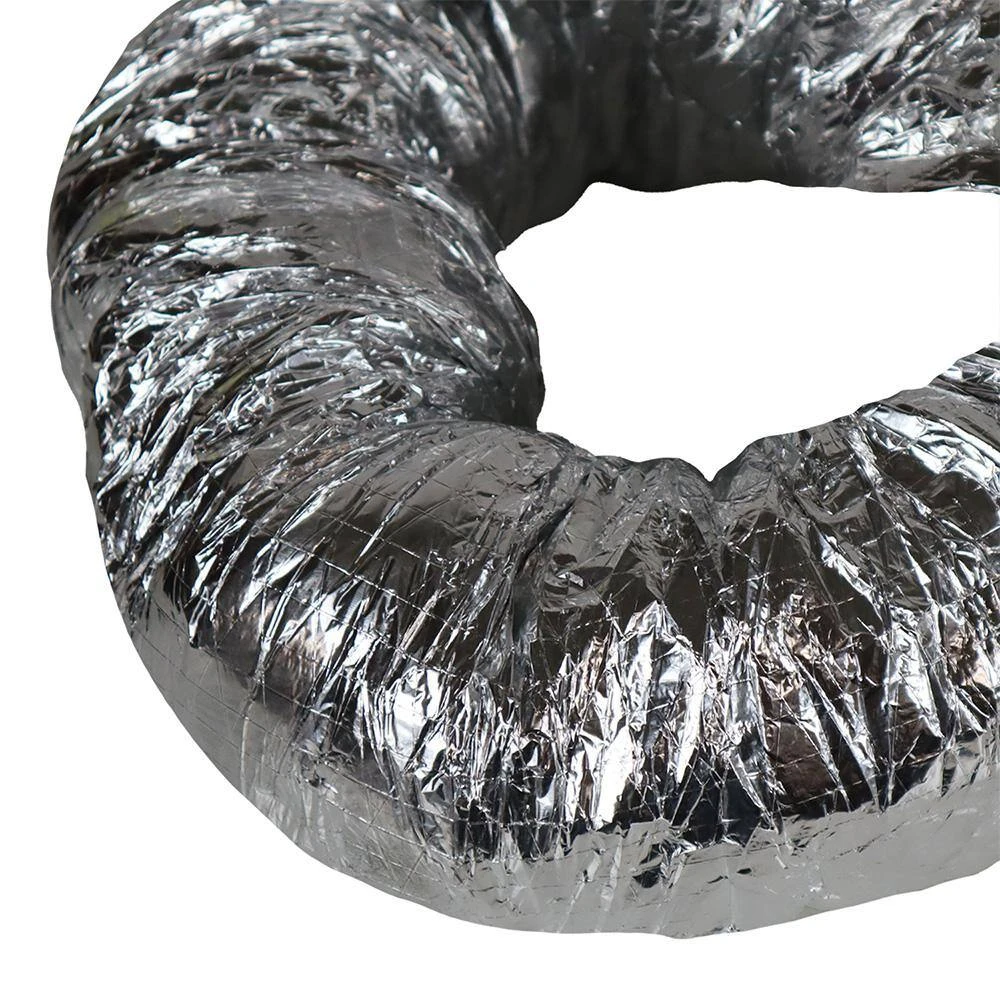

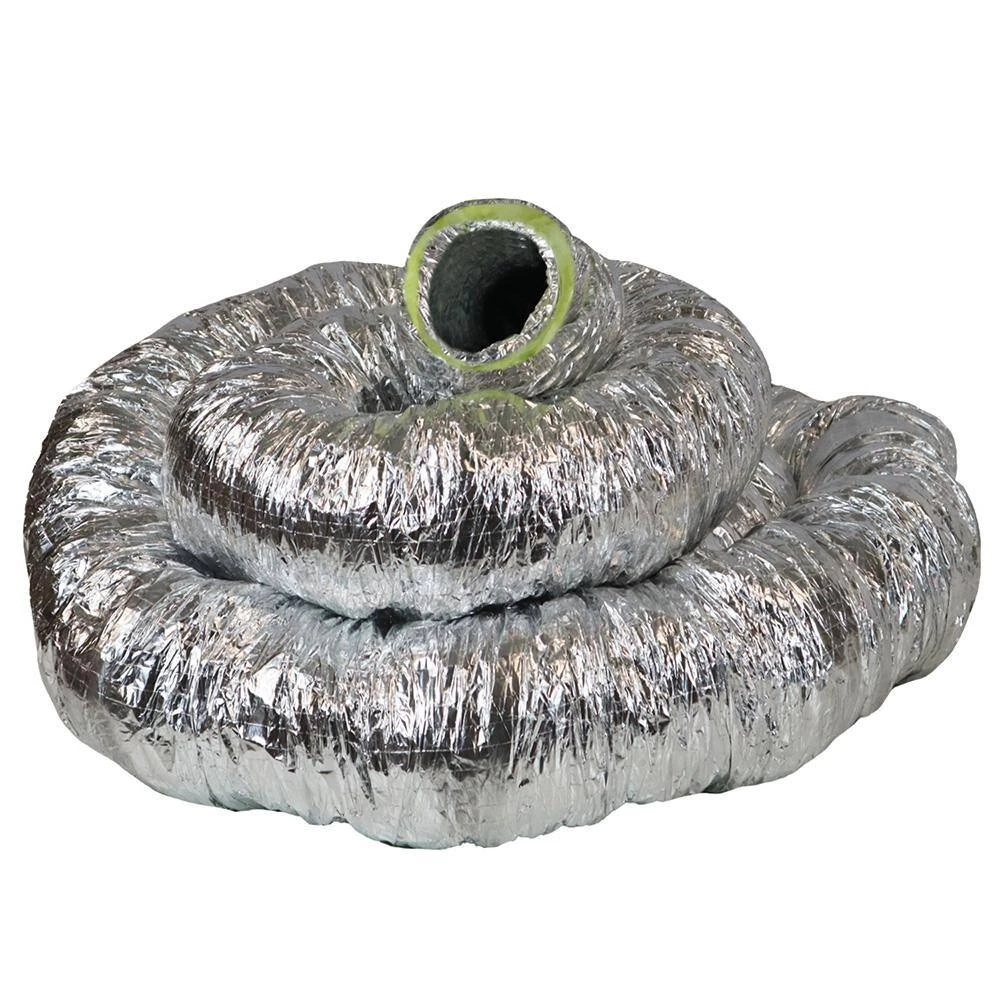

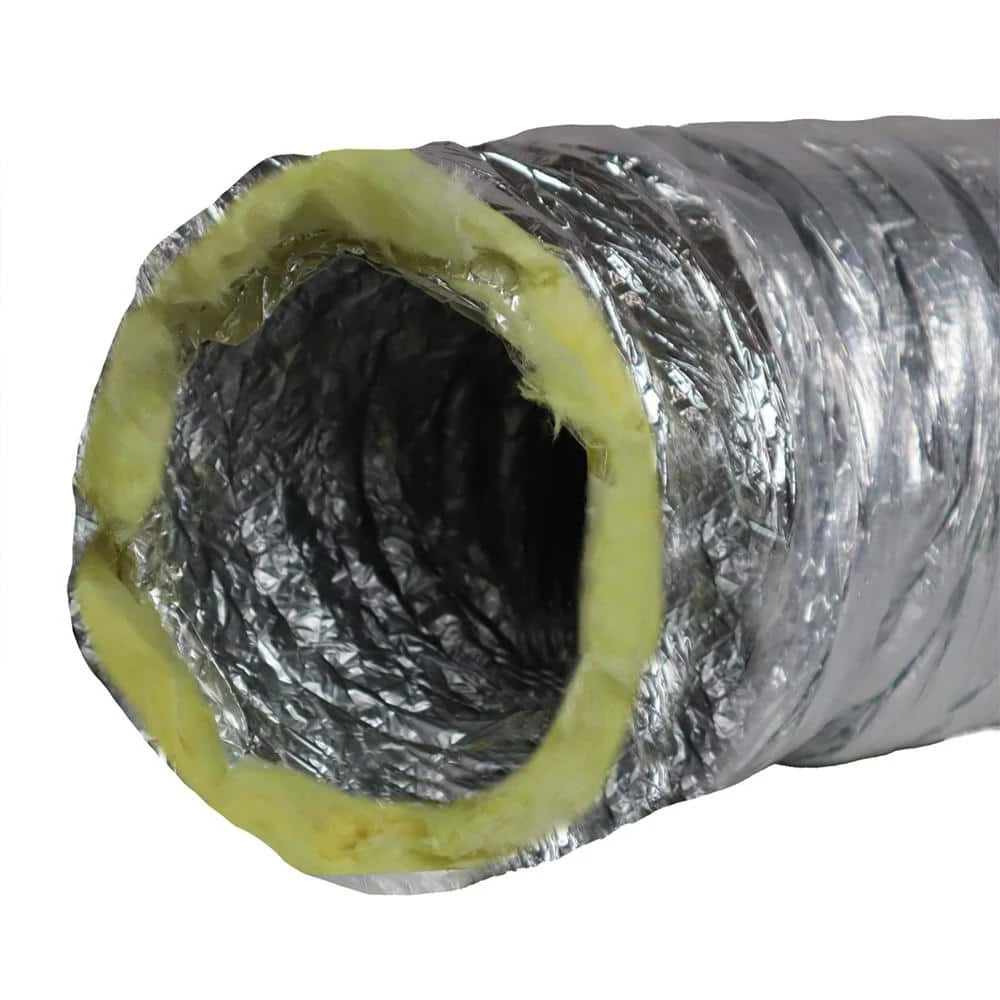

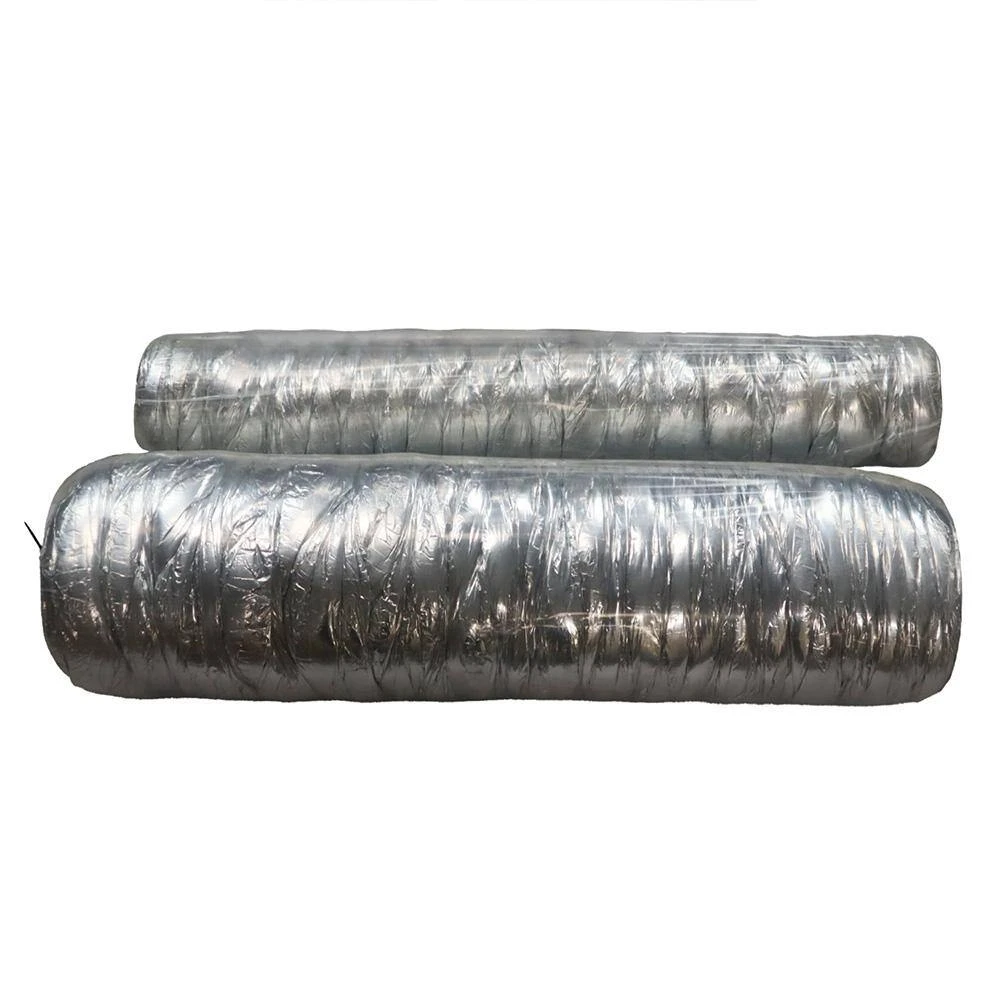

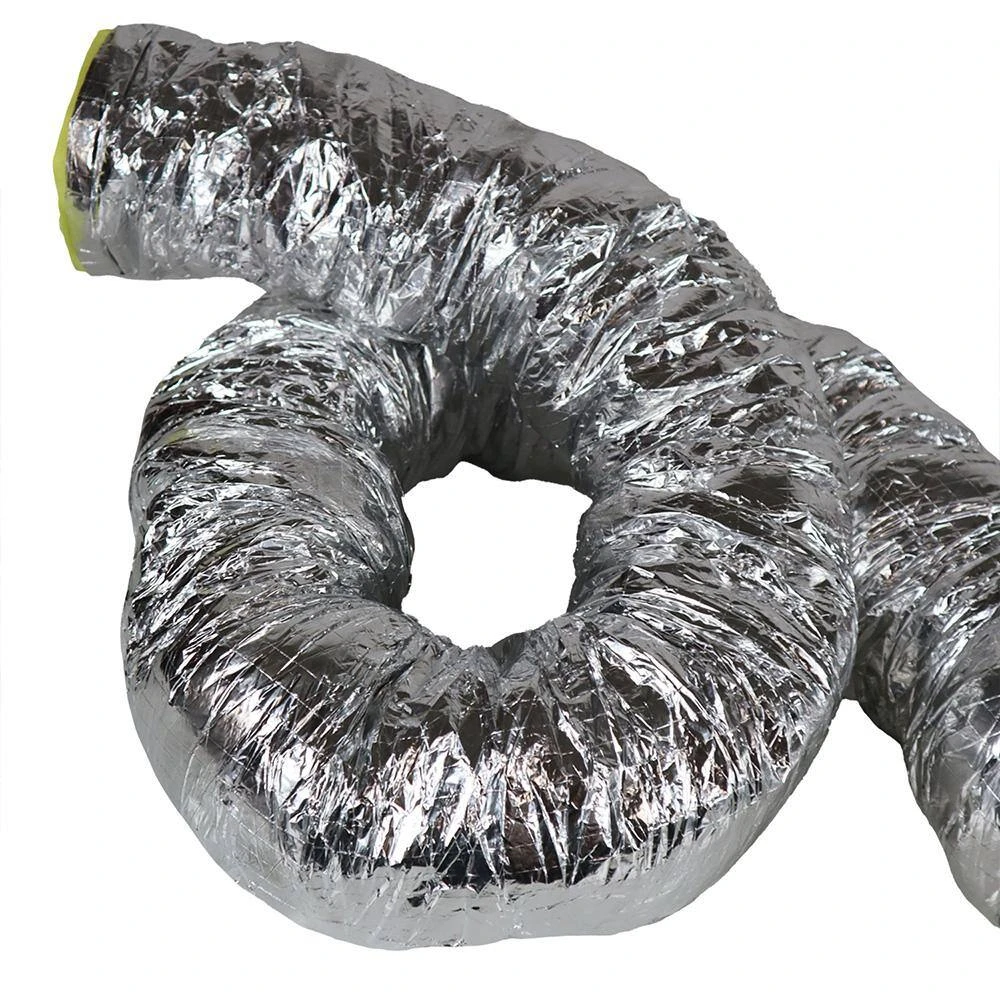

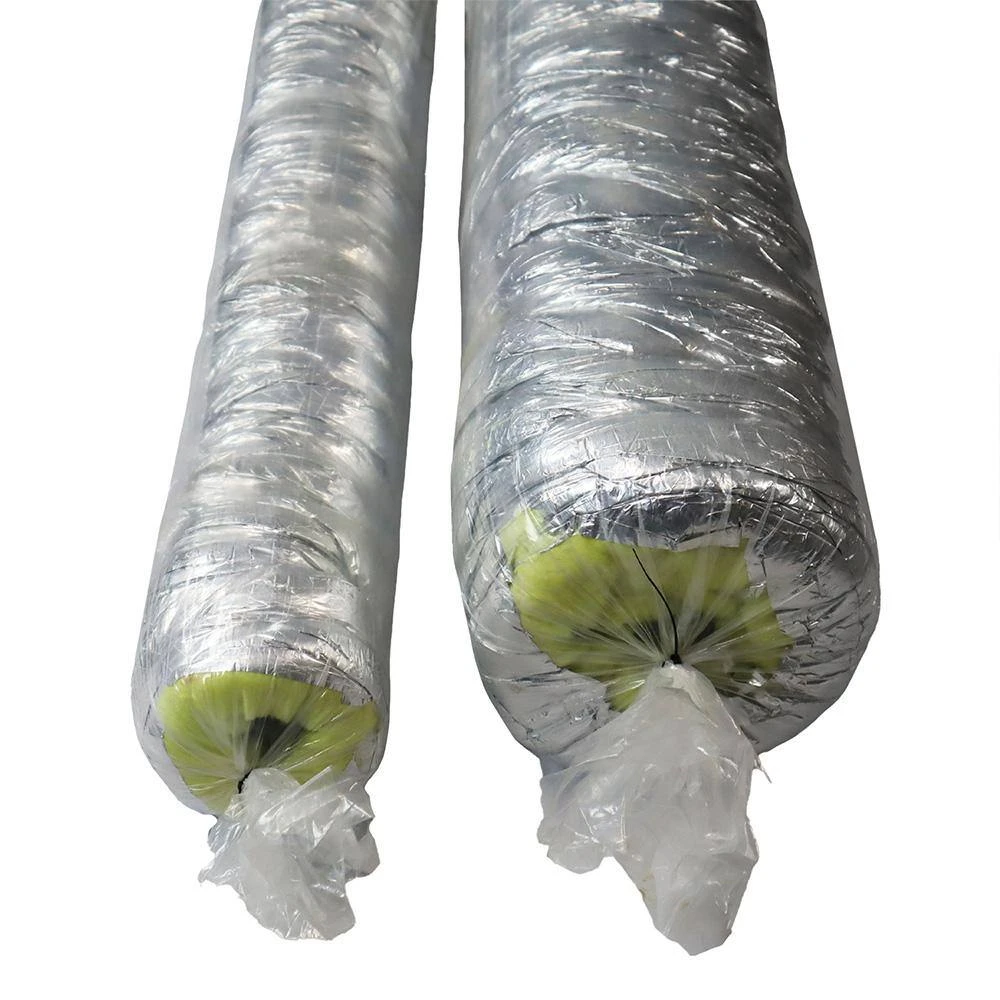

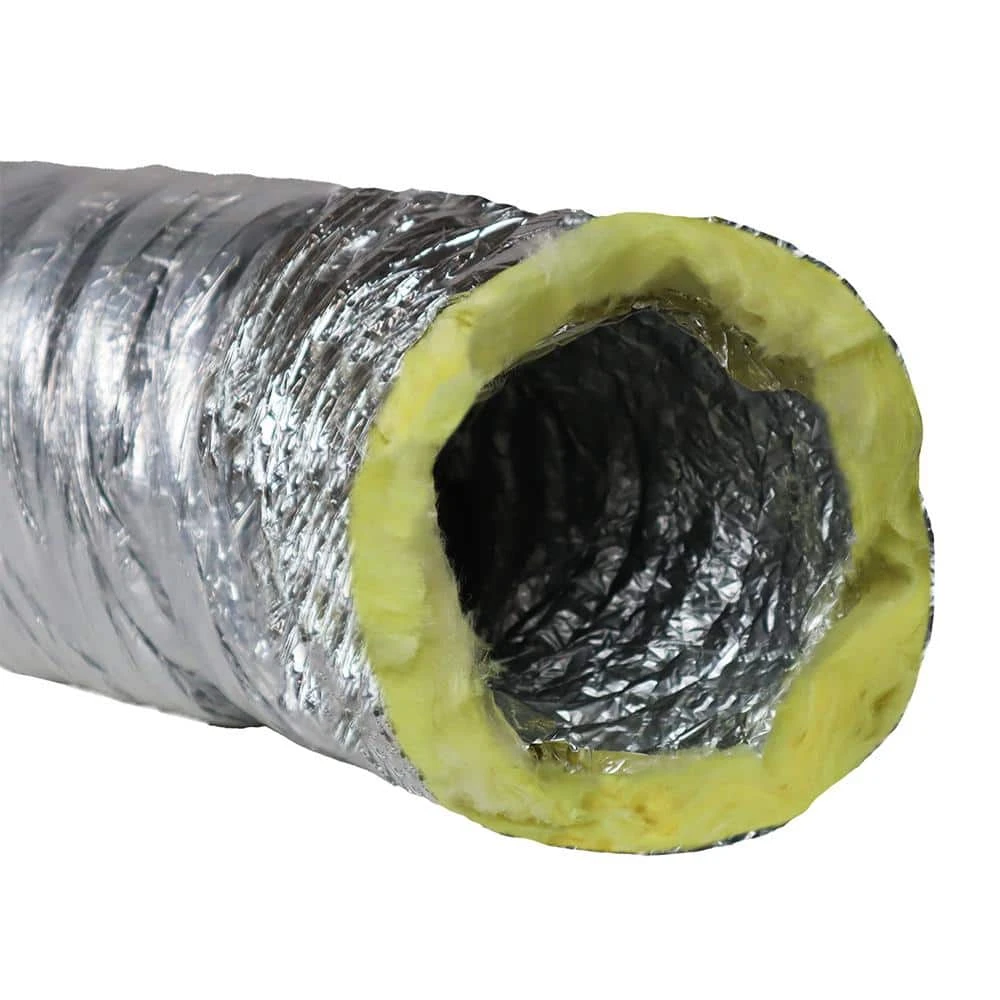

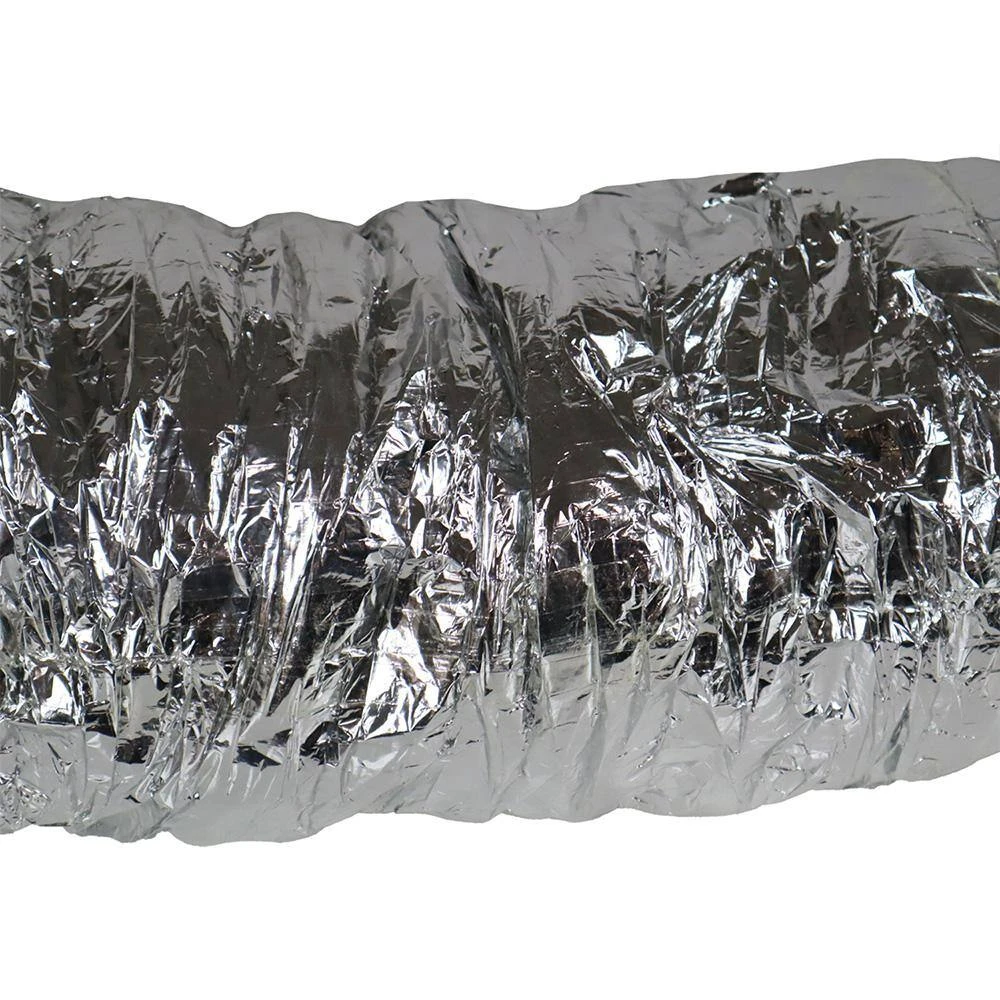

The HVAC Insulated-Flex R-6 is an insulated hose specifically made for the movement of conditioned air and made to reduce the amount of heat loss as the air travels across the hose length. This Insulated flexible duct is constructed with plies of aluminum foil and insulated with fiberglass duct wrap. There are 3 layers across the wall thickness: the jacket is made from a silver fiberglass reinforced fabric, the insulation is a fiberglass wrap and the liner is a spiral aluminum foil duct. The hose is ideal for moving air-conditioned air and for use with permanent air conditioning units. This air conditioning duct is highly compressible, and it has a 5 to 1 compression ratio which allows a 25 ft. length to compress to a 5 ft. length. The hose is sold in 25 ft. coils and is sold in popular duct diameters of 4, 6, 8 and 12 in. inside diameter. The flex duct ends are plain-cut and can easily fit over a pipe or a connector of the same outside diameter. This flexible insulated duct has working temperature range of up to 160° Fahrenheit on the high side and -20° Fahrenheit on the low side. The R-Value of an insulated ductwork measures how well the insulation can resist heat loss as the air travels within the duct. R-4 to R-8 are the ideal R-Value range for insulated ducts used in air ventilation. The HVAC Insulated-Flex R-6 is an insulated duct that delivers the best of both worlds, which is a hefty insulation wrap while keeping material costs within budget.
