5/8 In. OD Flare (15/16-16 Thread) X 3/4 In. FIP Gas Ball Valve

5/8 In. OD Flare (15/16-16 Thread) X 3/4 In. FIP Gas Ball Valve - Image 2

5/8 In. OD Flare (15/16-16 Thread) X 3/4 In. FIP Gas Ball Valve - Image 3

5/8 In. OD Flare (15/16-16 Thread) X 3/4 In. FIP Gas Ball Valve - Image 4

Original price was: $17.19.Current price is: $12.03.

SKU: AG9TZ 145945 Categories: HVAC Supplies, Pipe Fittings & Connectors

No-Questions-Asked Returns
Guaranteed High Quality
Top-Notch Quality
Online assistance, always just a message away.

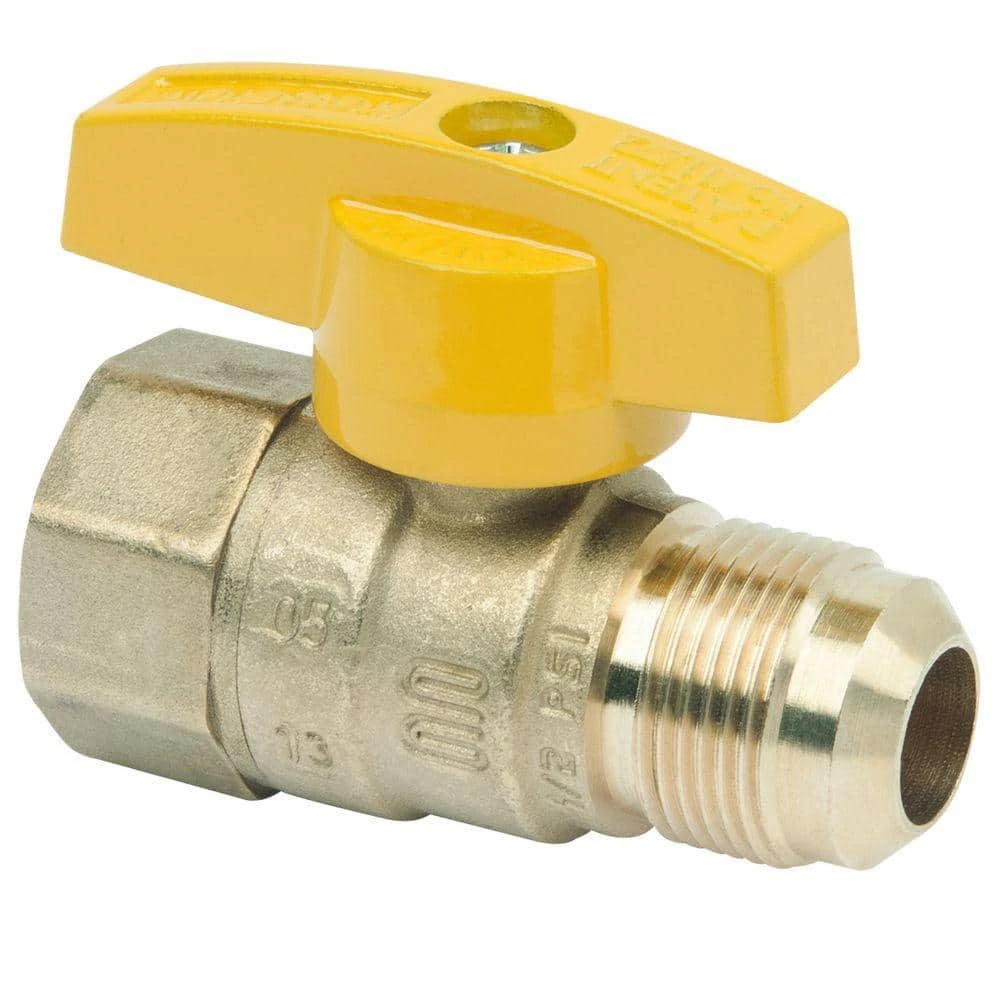

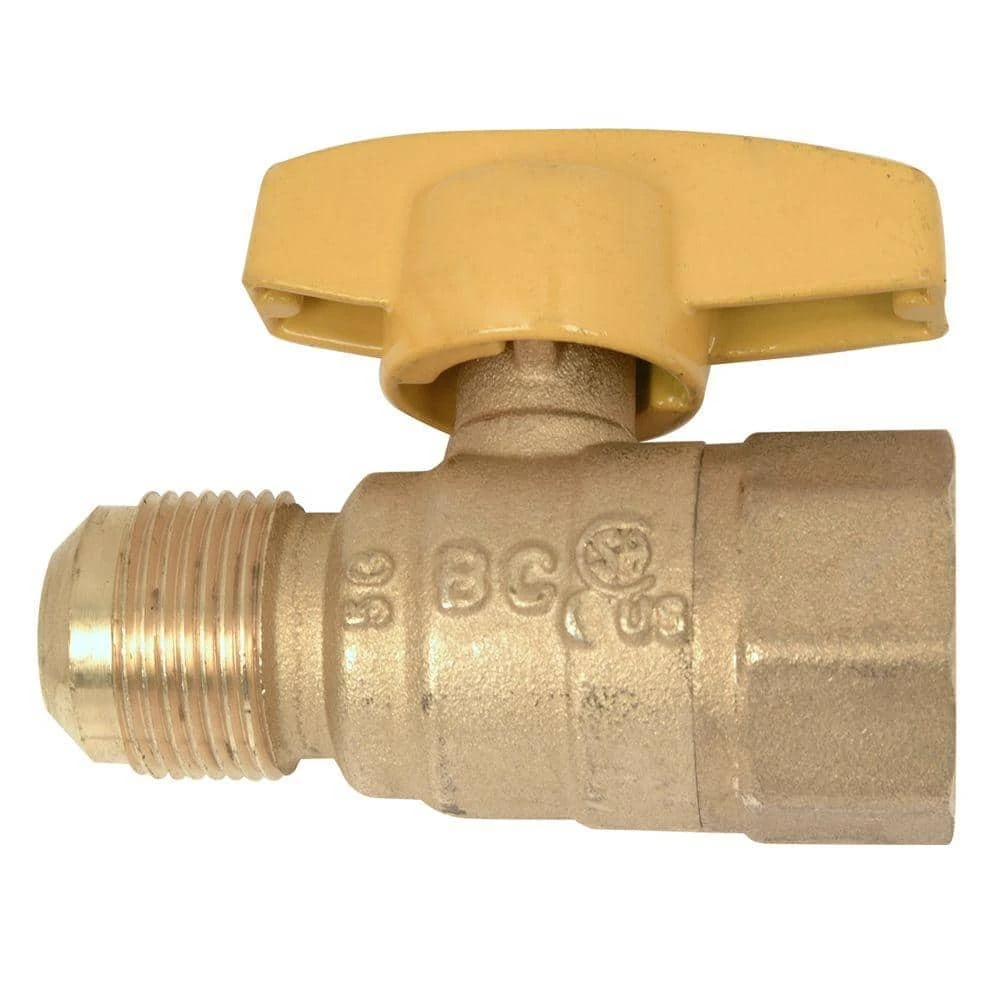

BrassCraft Manufacturing’s exclusive line of Italian-made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. It connects to iron piping to regulate gas flow.

Connects to a 5/8 in. O.D. gas connector and a 3/4 in. male iron pipe gas supply
Forged brass body eliminates pinhole leaks commonly associated with cast products
PTFE seats assure a tight seal and easy on & off operation even after long periods of inactivity
Blow-out-proof stem assembled from the inside with double o-rings to ensure safe, reliable performance
Comfort-fit grip handle features an exclusive integration of the ‘T’ and lever handle designs
1/4 Turn operation provides easy on & off flow control
Large wrench flats make installation easier
Approved for indoor and outdoor use
100% leak tested
Temperature rating: 32° F to 125°F
Pressure rating: 5 psi maximum
CSA certified

Connection type	Flare x FIP
Inner material	Brass
Maximum Pressure (PSI)	5
Maximum Working Temperature (F)	125
Minimum working temperature (F)	32
Outer Material	Brass
Pack Size	1
Remote Access	No Remote Access
Returnable	90-Day
Certifications and Listings	CSA Listed
Manufacturer Warranty	Limited Manufacturer Warranty
Inner diameter (in.)	0.5
Outer diameter (in.)	0.625
Product Height (in.)	6.875 in
Product Length (in.)	6.875 in
Product Width (in.)	4.875 in
