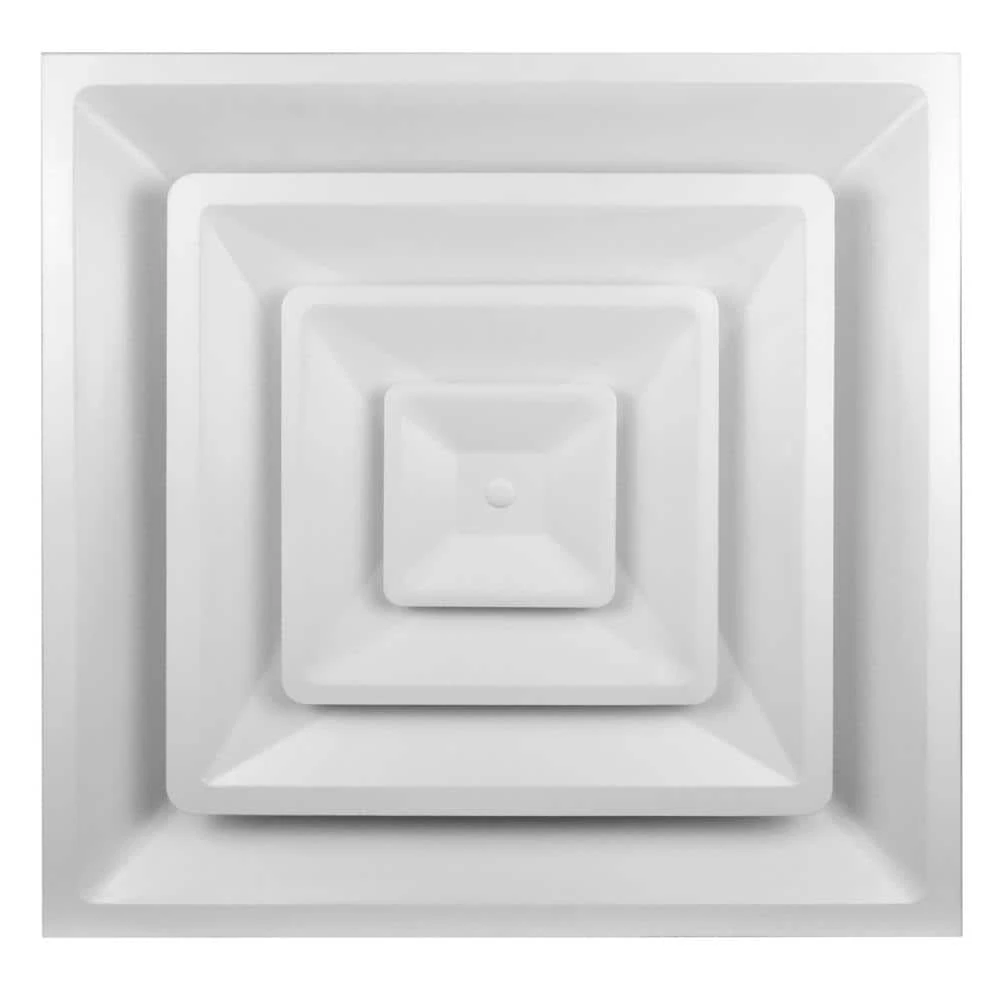

24 In. X 24 In. T-Bar Drop Ceiling Lay-In Supply Diffuser Without Collar/Neck And R6 Insulation

24 In. X 24 In. T-Bar Drop Ceiling Lay-In Supply Diffuser Without Collar/Neck And R6 Insulation - Image 2

Original price was: $72.41.Current price is: $50.69.

SKU: AG9TZ 1004189463 Categories: HVAC Supplies, Registers & Grilles, Venti Air Registers & Grilles

No-Questions-Asked Returns
Guaranteed High Quality
Top-Notch Quality
Online assistance, always just a message away.

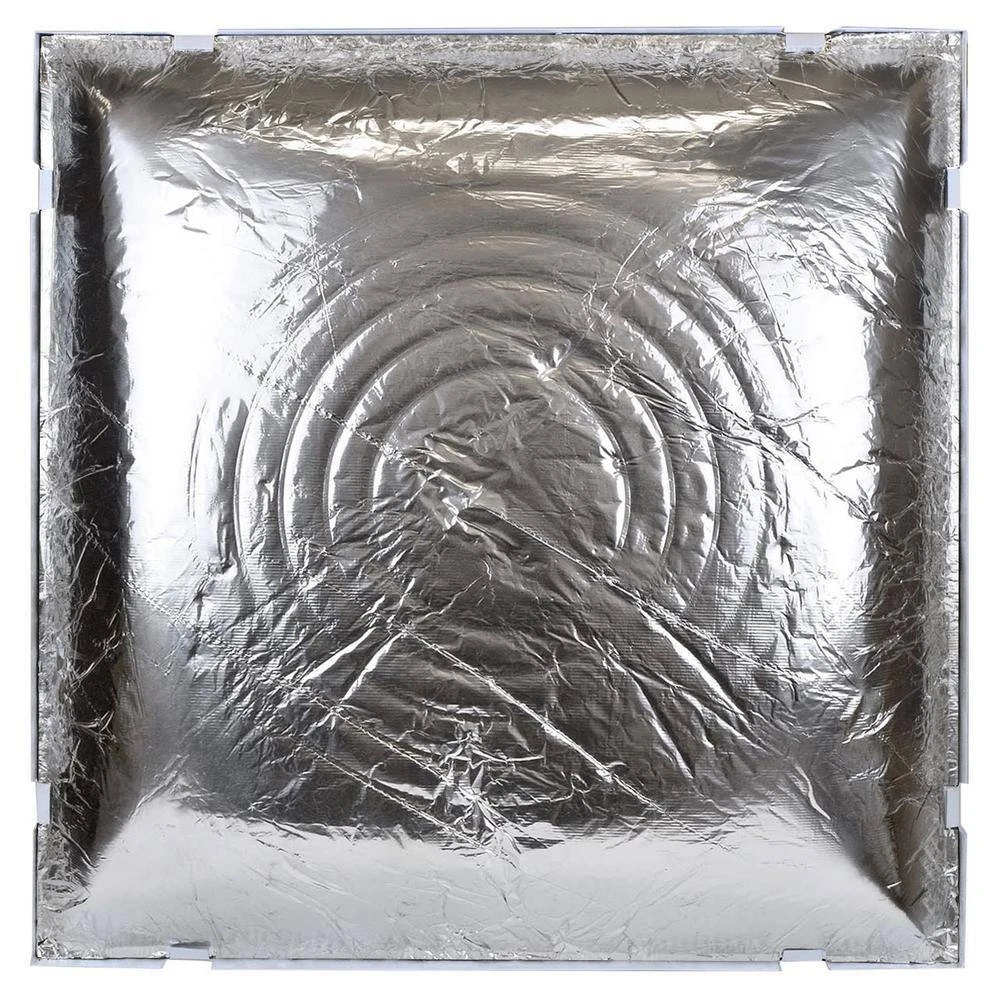

3-cone air diffuser is for T-Bar, Drop Down, Lay in ceilings. 2-1/2 in. high grooved collar makes installation easier and faster. Optional damper sits in the groove. R6 insulation with vapor barrier reduces condensation. It does not have a collar and needs a start or tab collar to connect the diffuser to the duct. The collar can be from 4 in. to 14 in. diameter.

Distance between the cones is adjustable and works well with variable air flow patterns
For collar installation, you start by cutting appropriate size hole in the collar and choosing the start collar that will fit the size of hole; A 7 in. start collar will need 7 in. hole; start by bending every other tab on a start collar 90°; insert the remaining straight tabs into the hole that you cut and then bend the straight tabs 90° to the inside of the hole to hold the collar in place; we recommend using duct tape to seal around the connection from the start collar to the diffuser
Surface mounted or suspended grid system installation
Made of steel and white powder coated for durability and smooth glossy finish
Need the white color is easy to paint over
Outside dimensions are 23.75 in. x 23.75 in.

Color	White
Color Family	Whites
Features	Louvered
Installation Location	Ceiling
Material	Steel
Maximum Duct Opening Length (in.)	24 in
Maximum Duct Opening Width (in.)	24 in
Pack Size	1
Product Weight (lb.)	7 lb
Returnable	90-Day
Manufacturer Warranty	Limited one year
Outside Length (in.)	24 in
Outside Width (in.)	24 in
