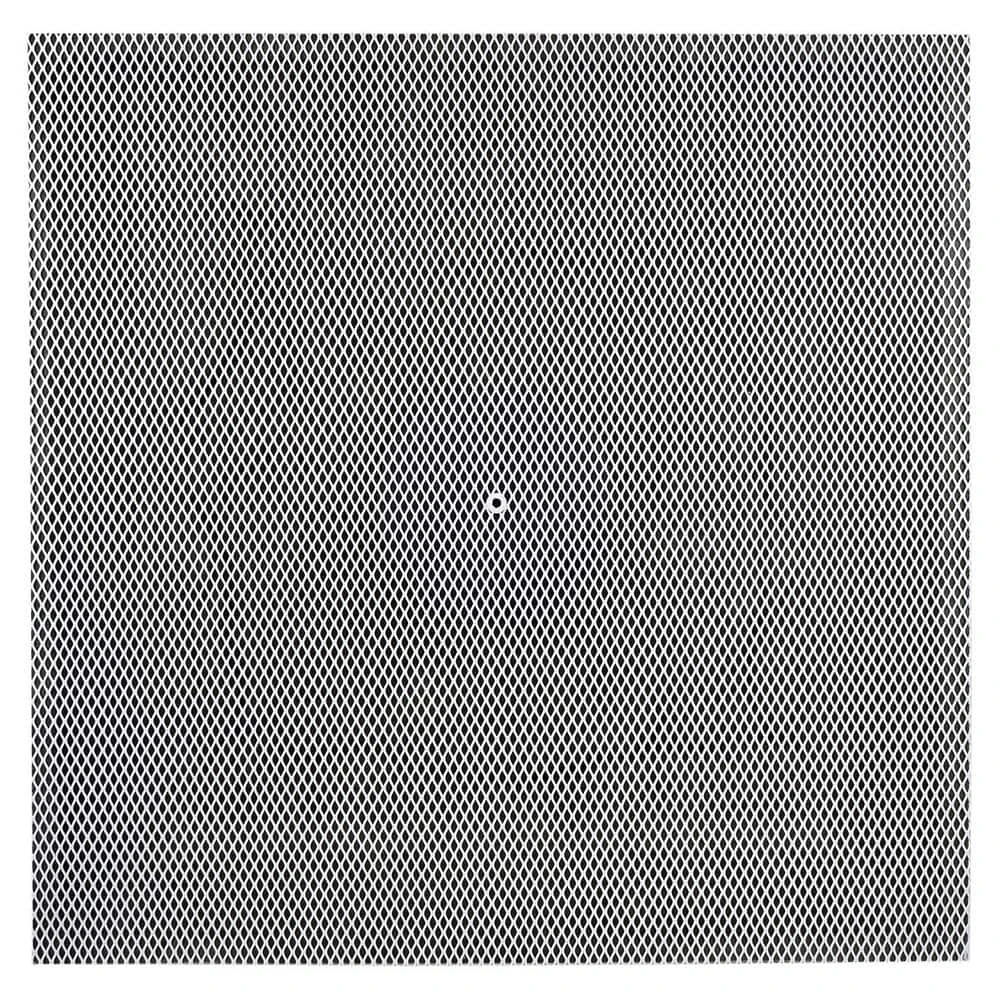

24 In X 24 In Perforated Grille With R6 Insulation For T-Bar, Lay In, Drop Ceiling

24 In X 24 In Perforated Grille With R6 Insulation For T-Bar, Lay In, Drop Ceiling - Image 2

Original price was: $59.74.Current price is: $41.82.

SKU: AG9TZ 1004189457 Categories: HVAC Supplies, Registers & Grilles, Venti Air Registers & Grilles

No-Questions-Asked Returns
Guaranteed High Quality
Top-Notch Quality
Online assistance, always just a message away.

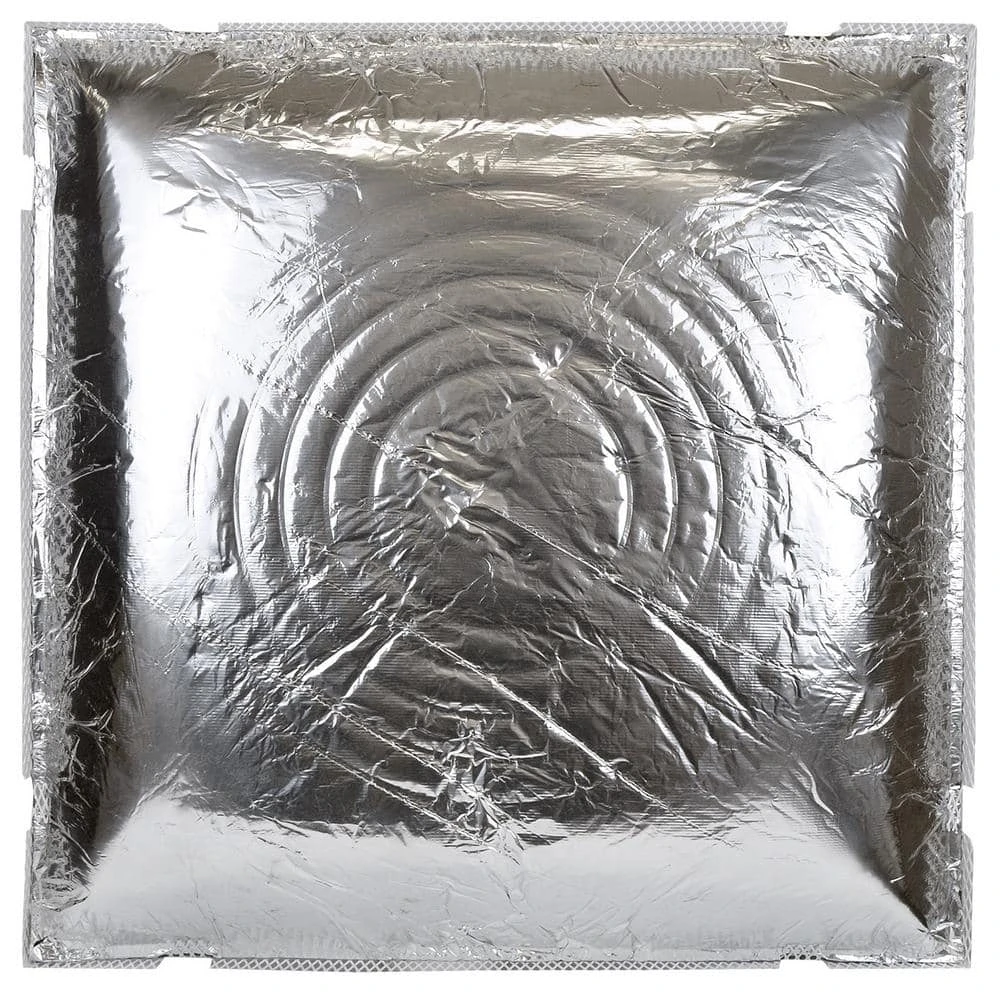

T-Bar Drop Ceiling Lay In perforated diffuser is designed for 360° high volume air supply or return for commercial or large areas. It comes with molded R6 insulation with vapor barrier. It does not have a collar and needs a start or tab collar to connect the diffuser to the duct. The collar can be from 4 in. to 14 in. Dia.

For air supply no change is needed, the center deflector forces air flow in 4-directions, for return grille please remove the circular piece of black rubber that is glued in the center of the diffuser
For use as return grille please remove the deflector piece that is glued in the center of the diffuser
For collar installation, you start by cutting appropriate size hole in the collar and choosing the start collar that will fit the size of hole; A 7 in. start collar will need 7 in. hole; start by bending every other tab on a start collar 90°; insert the remaining straight tabs into the hole that you cut and then bend the straight tabs 90° to the inside of the hole to hold the collar in place; we recommend using duct tape to seal around the connection from the start collar to the diffuser
Made of steel and white powder coated for durability and smooth glossy finish
If needed the white color is easy to paint over
Outside dimensions are 23.75 in. x 23.75 in.

Color	White
Color Family	Whites
Features	Louvered
Installation Location	Ceiling
Material	Steel
Maximum Duct Opening Length (in.)	24 in
Maximum Duct Opening Width (in.)	24 in
Pack Size	1
Product Weight (lb.)	5 lb
Returnable	90-Day
Manufacturer Warranty	Limited one year
Outside Length (in.)	24 in
Outside Width (in.)	24 in
