The 5 CFM single-stage vacuum pump features a 1/3 HP high-torque, 4-pole pure copper motor that minimizes wear and maximizes efficiency. With a 5 CFM flow rate and the ability to evacuate systems down to 2 Pa in just 3 minutes, it ensures a faster, more thorough evacuation for a cleaner, more efficient process. Weighing just 17.6 lbs. this pump is easy to carry with an ergonomic handle and non-slip feet. With a 5 CFM high flow rate, it’s ideal for 1-3 HP split A/Cs, 1-2 HP central A/Cs, 1-3 HP small commercial A/Cs, and vehicle A/C systems.
- HVAC vacuum pump includes 1/2 in. ACME and 1/4 in. SAE ports, along with 2-R410A 1/4 in. male to 5/16 in. female adapters and one 1/4 in. male to 1/2 in. female adapter
- Refrigerant type: R134A, R12, R22, R502 and R410A

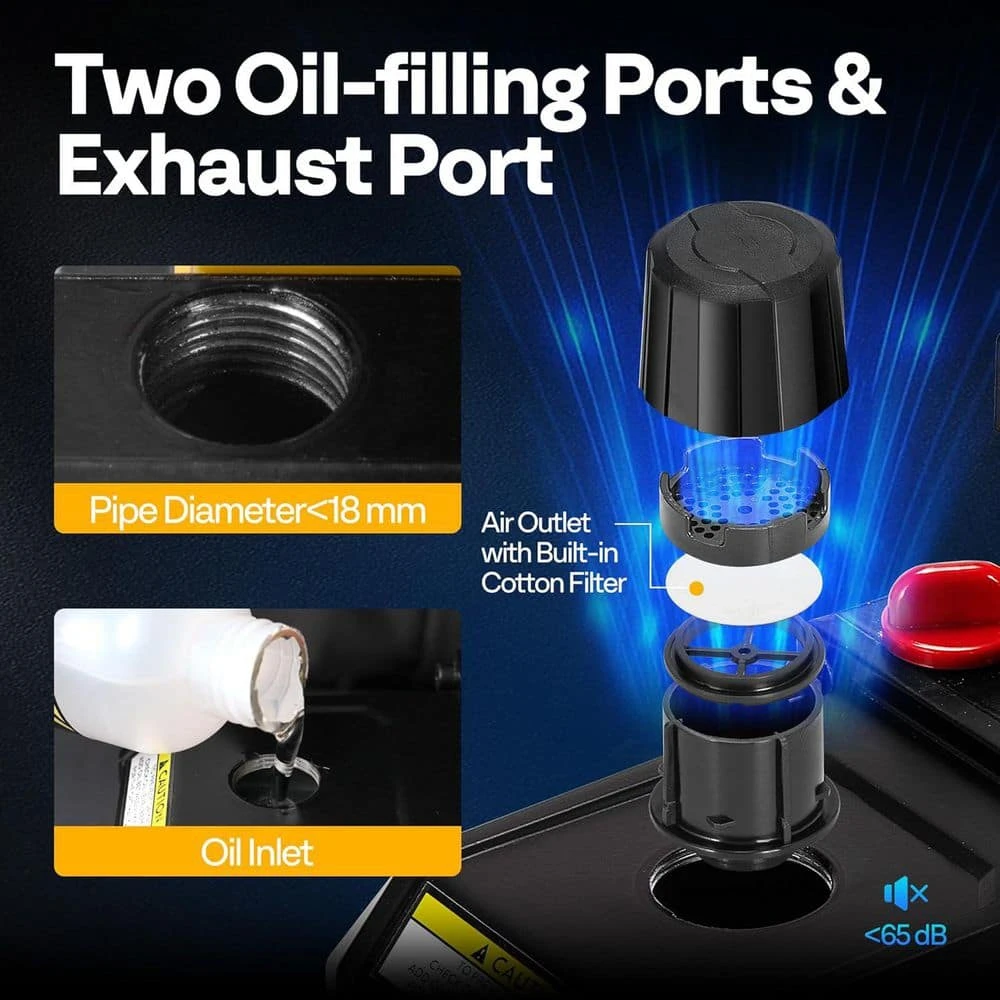

- Anti-backflow valve prevents oil backflow during sudden shutdowns, while a current protector safeguards the motor
- Die-cast aluminum housing minimizes leaks, while the visible oil window allows easy monitoring of oil levels
- Manifold gauge ensures precise pressure measurement for refrigeration systems
- Easily identify the high-pressure (red), low-pressure (blue), refrigerant adding(yellow), and vacuuming(black) hoses
- Pump oil type: viscosity grade 46
- Recommended oil capacity: 0.27 qt. (260 ml)
